Bunded Oil Tank Replacement & Hazardous Waste Removal

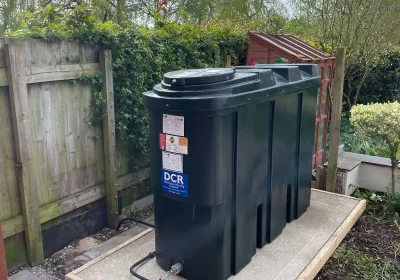

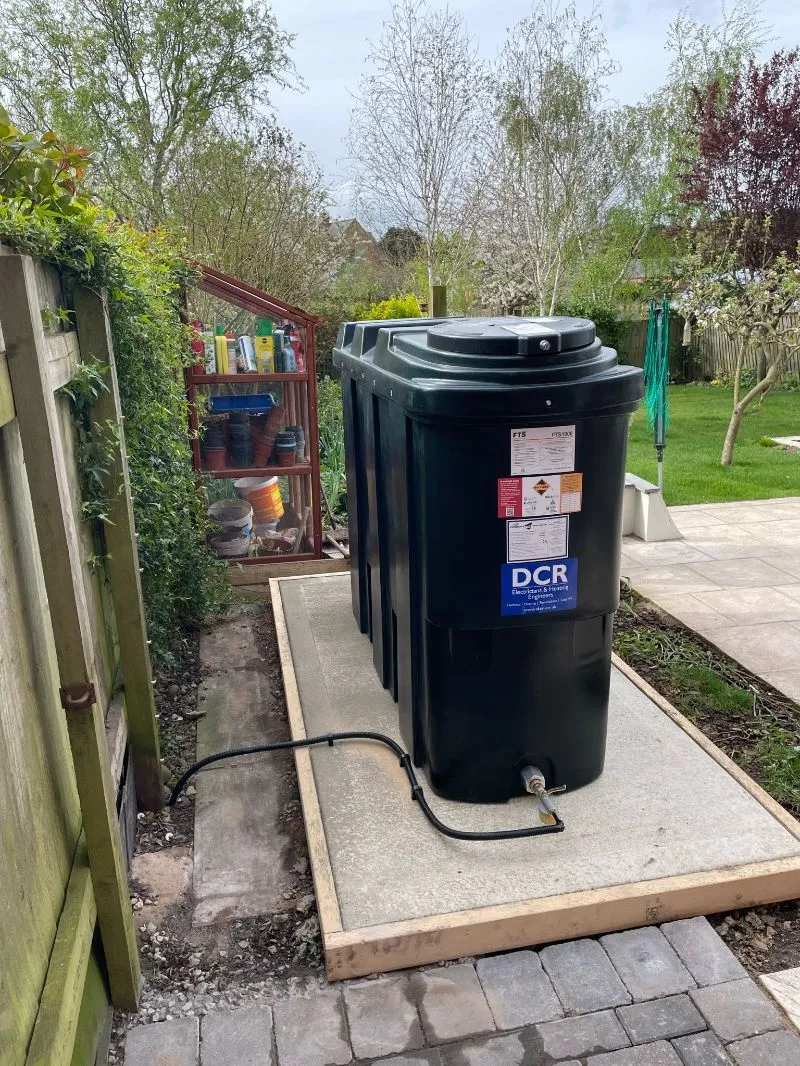

We recently replaced an aging, contaminated oil storage unit with a bunded 1000-litre plastic oil tank complete with a wireless digital fuel monitor and lockable lid. Installed in the existing tank location, the new unit meets OFTEC regulations and comes with a 10-year manufacturer’s warranty

To achieve the required 760mm fire-safety clearance from the property boundary, we removed the adjacent fence. The installation included constructing a steel-reinforced, 100mm-thick concrete base, extending 300mm on all sides to provide structural stability and full compliance with industry standards.

Our team managed the safe removal and disposal of the contaminated oil and redundant tank, using licensed hazardous waste contractors. The tank was cut up, cleaned with oil absorbents, and disposed of through the appropriate waste channels, with all materials tracked via waste transfer notices.

We installed a new fuel pump, HRM non-return valve, and nozzle, and flushed the fuel line to remove residual water particles. All pipework connections were upgraded for security, with a full fuel line tightness test carried out to confirm integrity.

Backed by ongoing servicing support from our engineers, this project delivers a safer, more reliable, and environmentally compliant oil storage solution, all while maintaining our zero landfill commitment.

Boosted Unvented Hot Water System Installation

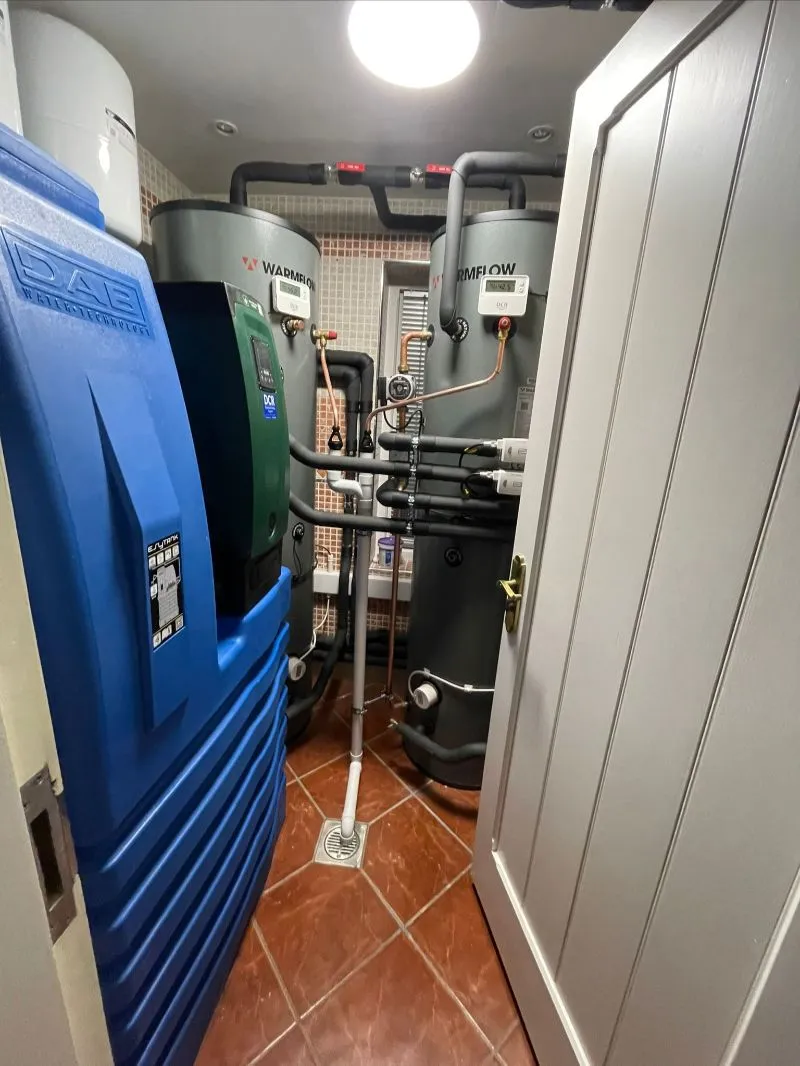

Our team recently transformed an outdated vented hot water system into a high-performance, boosted unvented hot water solution compliant with PART L building regulations. The project began with the safe removal of loft storage tanks, redundant pipework, shower pumps, and two vented hot water cylinders.

We created a new dedicated plant room to house two unvented cylinders, each fitted with a destratification pump and plate-to-plate heat exchange technology for greater high-temperature water storage and improved efficiency over standard coil-heated designs.

To maintain water quality and extend system life, we installed a whole-house scale reducer, expansion vessel, pressure relief valves, and line strainers. The new setup was integrated with the property’s existing boilers for seamless heating performance.

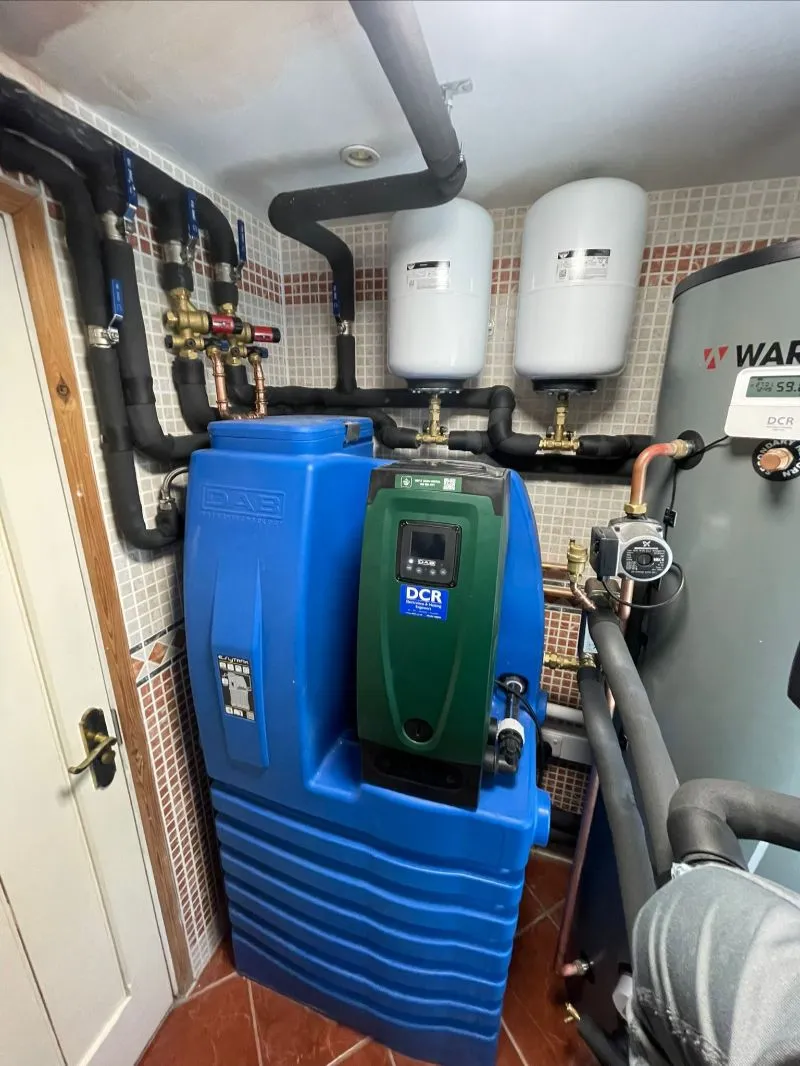

A DAB and boost pump system was installed alongside the cylinders to ensure strong, consistent water pressure across the property. Heating system modifications included additional Spirovent filters, balancing valves, and a new expansion vessel to accommodate the increased capacity.

Backed by a 10-year manufacturer’s warranty on component and a 25-year anti-perforation coverage, this upgrade delivers reliability, efficiency, and exceptional hot water performance for years to come, all with zero landfill waste from the installation process.

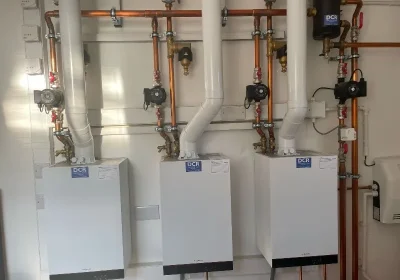

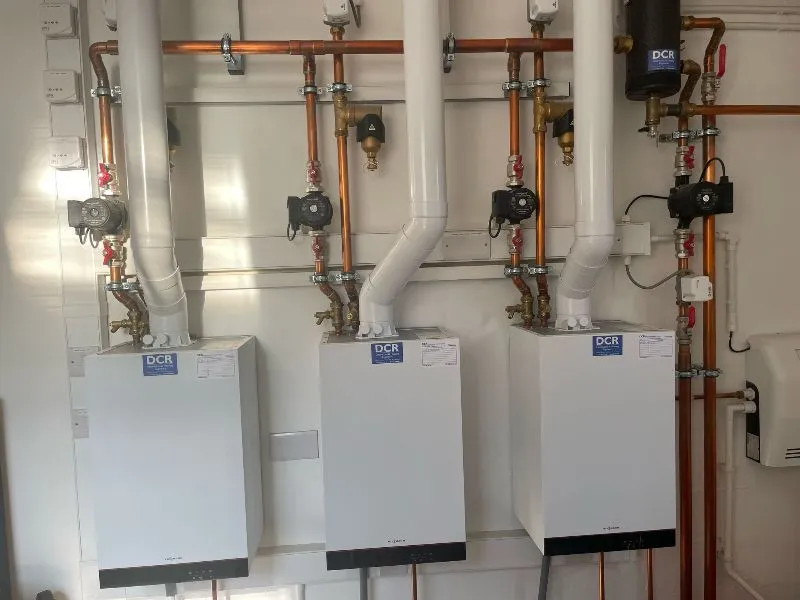

High-Efficiency Boiler Cascade Installation & Heating System Upgrade

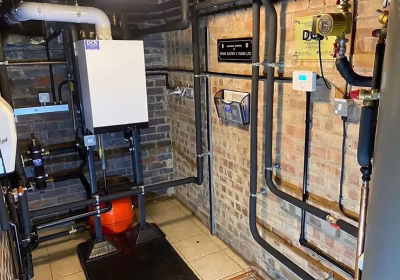

Our engineers successfully replaced an outdated heating setup with a three-boiler Viessmann Vitodens cascade system, designed for optimum efficiency, reliability, and compatibility with traditional cast radiators. The new configuration delivers precise zoned heating and hot water control, meeting PART L building regulations while reducing energy waste.

We upgraded the system to a closed heating design, with dual expansion vessels, hydraulic separation to protect the boilers, and full magnetic filtration for long-term performance. Each boiler was installed with independent pumps and valves, ensuring balanced flow rates and protecting the heat exchangers.

Our in-house NICEIC-approved electrical team installed Wi-Fi-enabled programmable thermostats for remote heating control, digital immersion timers, and intelligent boiler cascade wiring to maximise energy efficiency. Gas supply alterations, upscaled pipework, and safety bonding ensured compliance with all regulations.

The installation included a complete flush with inhibiting chemicals, integration of 7 new circulators, and a condensate protection system for frost safety. All work was finished with careful utility room refurbishment, removal of redundant feed tanks, and 100% recycling of installation waste.

Backed by a 10-year manufacturer warranty, this system is built for reliability, efficiency, and future-proof performance.

Commercial Boiler Installation – Collingham Medical Centre

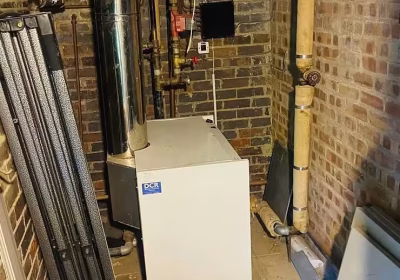

At Collingham Medical Centre, our commercial GAS SAFE and NICEIC teams replaced two outdated floor-standing boilers with three high-efficiency Viessmann Vitodens boilers. This upgrade delivers precise demand-based modulation, significant gas savings, and improved system longevity.

We installed new hydraulic separation pipework, an 80-litre expansion vessel, and upgraded system zone controls, all Wi-Fi enabled for remote operation via an app. The plant room was fully rewired and re-piped for neatness and performance, and a new independent vertical flue system was fitted to meet modern safety standards.

The sealed heating system now benefits from magnetic filtration, Sentinel X100 dosing, and optimised flow rates via individually pumped boilers. Gas supply alterations, safety interlocking with CO detection, and PART L compliant controls ensure both safety and efficiency.

Our team also integrated seven new circulators, programmable thermostats, and intelligent cascade wiring to prioritise hot water via a single boiler, maximising efficiency and reducing energy use. Condensate protection was added to safeguard operation in freezing conditions.

This project is backed by a 12-year manufacturer’s warranty on the boilers, a 3-year workmanship guarantee, and our commitment to zero landfill waste, with all old plant room equipment and materials responsibly recycled.

Installation of a Viessmann Vitocal 100-A Heat Pump System, London

Our engineers replaced an outdated boiler with a Viessmann Vitodens 100 touchscreen condensing boiler, an ‘A’ rated system designed for maximum efficiency. Installed on a custom frame within the existing plant room, the new boiler was carefully sized and commissioned to match the property’s heating demand, preventing over or underperformance.

A new flexible room-sealed flue liner was fitted through the existing chimney, improving safety and compliance, while the condensing design ensures cleaner operation. The heating system was upgraded to a sealed closed-loop design with a 35-litre expansion vessel, pressure relief valves, and hydraulic separation to protect the boiler’s heat exchanger and optimise flow.

The project also included new pipework, circulators, motorised valves, and the introduction of app-based intelligent controls, allowing full heating and hot water management from a smartphone or tablet. The system was power-flushed and treated with inhibitor, before being fitted with a Magnaclean filter for long-term protection.

The gas supply was modified, a condensate pump installed, and all electrical wiring carried out by our in-house NICEIC team in compliance with PART L regulations.

This installation is backed by a 10-year manufacturer’s warranty, extendable to 12 years, plus our 3-year workmanship guarantee. All waste, including the old flue and redundant feed tank, was responsibly disposed of in line with our zero landfill commitment.

Air Source Heat Pump Installation for Catherine Clarke

Our team recently completed the design, installation, and commissioning of a Warmflow R290 inverter-driven air source heat pump, replacing an older heat pump and hot water cylinder for a residential property.

We upgraded the heating to a closed sealed system with new insulated pipework, a high-efficiency buffer for improved defrost cycles, and mechanical hot water priority control. A HP240UV rapid recovery unvented cylinder with a destratification pump and plate-to-plate heat exchange now ensures an ample store of high-temperature water without additional heating sources.

To protect system longevity, we installed a whole-house scale reducer, dual Magnaclean filters, and carried out a full system flush with anti-freeze, inhibitor, and biocide treatment. All electrical work was completed by our in-house NICEIC-approved team, including intelligent programmable thermostats with app control.

The installation comes with comprehensive warranties alongside our annual servicing plan. All waste from the project was recycled to support zero landfill, reflecting our commitment to sustainability.

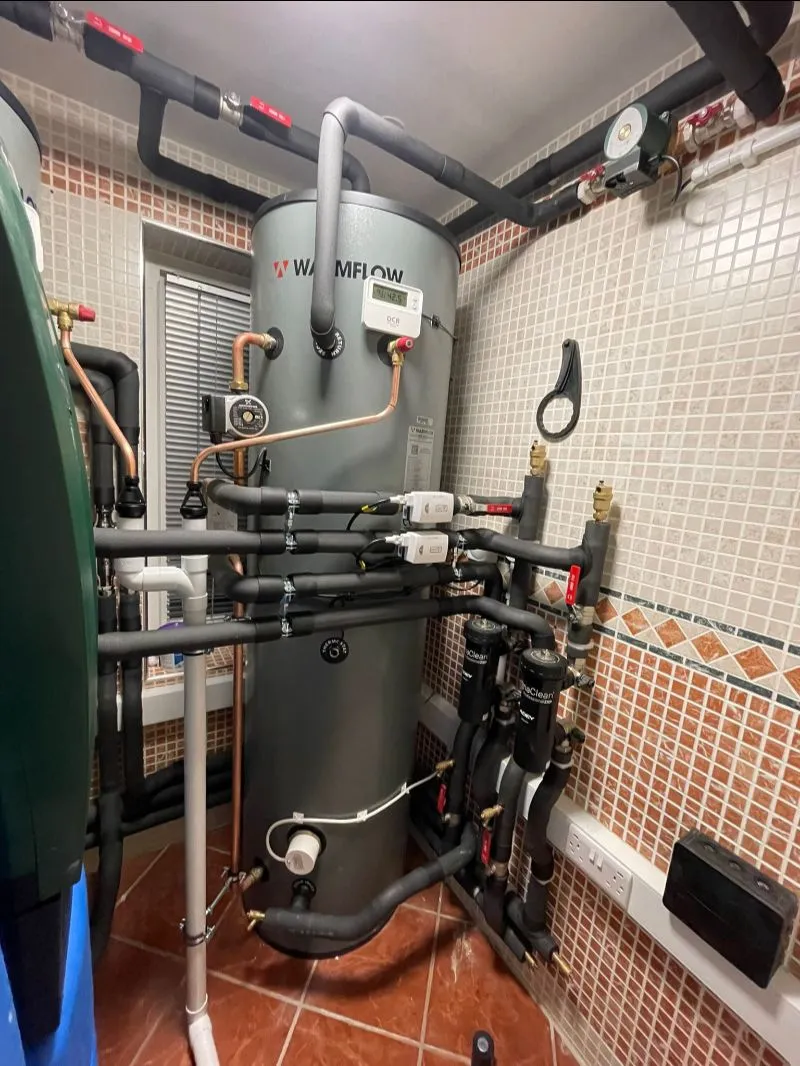

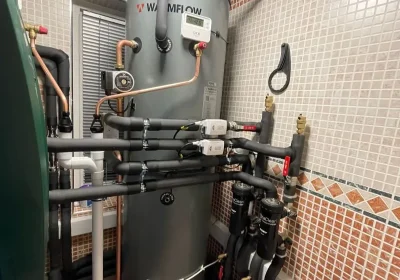

Warmflow Air Source Heat Pump Installation

Warmflow Air source heat pump, cylinder, fresh cold water, hot water, towel radiator circuit and all associated pipework installed on a high specification new build.

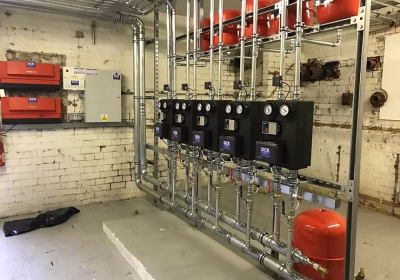

Viessmann Zone Installation

Viessmann zones installed and designed by DCR heating engineers.

Viessmann Warranty Work Being Carried Out By DCR Heating Engineers

Viessmann warranty work being carried out by our heating engineers on a viessmann vitovalor micro CHP

Viessmann Residential Plant Room Installation

Viessmann Vitodens 200 gas residential plant room alongside viessmann controls designed and installed by our heating engineers in Derbyshire. We also install residential boiler plant rooms from our London office in Mayfair with our team of highly experienced heating engineers and electricians.

Viessmann heating system performance check, London

Pre winter heating system performance check and service of the Viessmann 2 boiler cascade. Location: Roehampton, London. SW15.

Viessmann Gas Boiler Service London

Our heating engineers in London repairing and servicing a faulty viessmann gas boiler.

Viessmann Boiler & Warmflow Cylinder Installation

Out with the old in with the new. Viessmann boiler and warmflow cylinder installed for a new customer.

Viessmann Boiler Install South Kensington

New viessmann boiler installed in South Kensington. DCR were contacted due to flue restraints. We designed a new flue system to overcome these hurdles. We installed a new viessmann 200 boiler as well as the new flue.

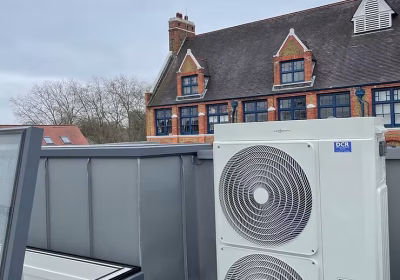

Viessman Air Source Heat Pump Installation in London

Our engineer Matthew working on a Viessman air source heat pump this week in London.

DCR are MCS approved Air Source heat pump installers and warmflow specialists. Air source heat pumps require careful planning and design to get them right. As experienced heating engineers we understand what is required to deliver an effective heating system using an Air Source heat pump as the heat source.

Solar PV system installation in Highgate North London

One of our vans out in Highgate North London bright and early this morning. We are installing a 3 phase solar pv system and 3 phase battery with the panels being fitted on a pitched roof and flat roof.

Solar PV & Air Source Heat Pump Installation – High Efficiency Heating & Electrical Systems

Flush mounted Solar PV installation on a new build house, followed by a full heating system including an air source heat pump and electrical installation. Making life easy for the client.

Solar Edge System and Battery Design & Installation

10kw flat roof solar edge system with 10kw solar edge battery install – we have every solution for reducing your energy bills at home or for your business from electric, oil and gas consumption. We provide the full energy survey and consultation and back that up with our highly skilled and experienced electricians, heating engineers and building team.

Solar Edge Seminar for team DCR

Two of our office staff attended a solar edge seminar to discuss the latest product updates and features with solar edge.

It’s great to build and maintain manufacturer relationships and stay current on all the latest features.

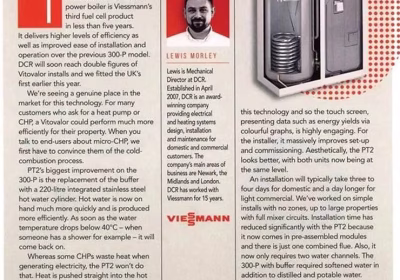

DCR proud UK suppliers of the Viessmann Vitovalor

As one of the few uk suppliers of the Viessmann Vitovalor we were asked to help write a feature on the product.

To learn more click here or contact us today.

Record numbers for urgent boiler breakdown assistance

A busy start to 2023. We have dealt with a record number of new customers requiring urgent boiler breakdown assistance. Here a DCR engineer was attending boiler breakdowns between Knightsbridge, Chiswick and Roehampton. DCR – specialists in large residential heating and hot water systems.

London Energy Solution Specialists

This year our heating engineers have worked on many heating systems in London. From new boiler and cylinder installations, heating system fault finding, repairs and routine boiler servicing.

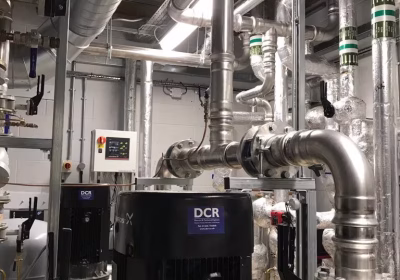

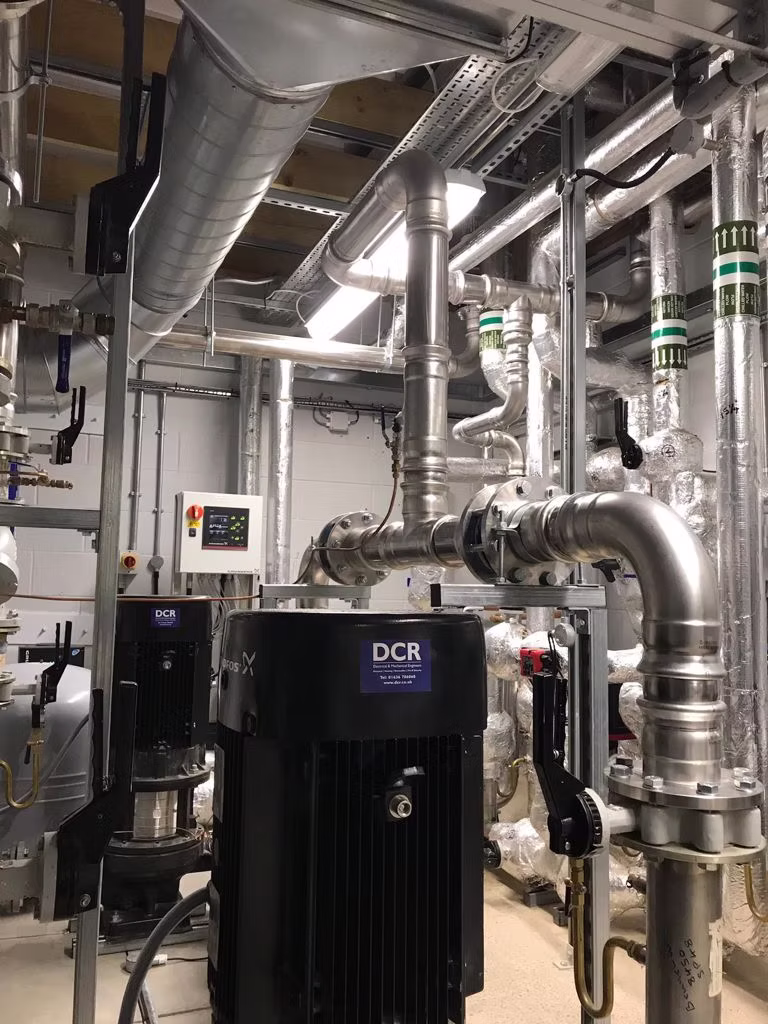

London Commercial Plant Room

Our heating engineers carrying out a commercial plant room in west London. Along with commercial plant rooms we also carry out residential boiler installations, servicing and repairs in Kensington, Chelsea, Belgravia and Westminster.

DCR Training & Product Updates with Industry Leading Solar Manufacturers

DCR spent some time looking at product updates and had some interesting conversations with our solar manufacturers. It’s very important to keep current in an ever changing industry.

DCR – Specialists in Large Residential Heating and Hot Water Systems

Our heating engineers specialise in large residential and small commercial heating and hot water systems. We install, service and maintain heating and hot water systems for many local schools, country manors, stately homes, care homes and large residential properties across the East Midlands and London. Our engineers focus will always be customer service, the highest standards of workmanship and most of all energy efficiency. Poorly installed and maintained heating and hot water systems do not deliver energy efficiency they are expensive to run and will always be expensive in repairs.

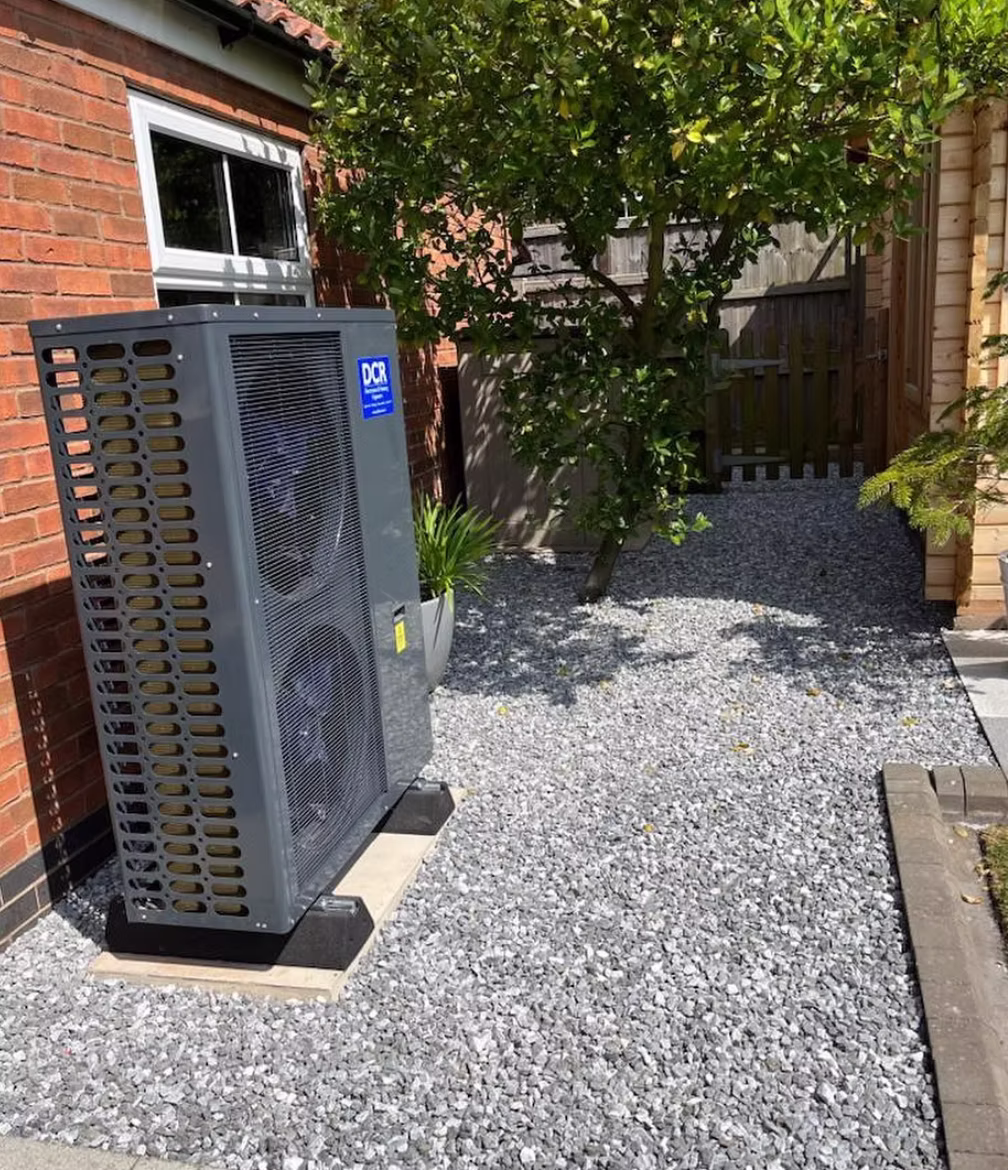

Air Source Heat Pump Installation

Air source heat pump retro fitted for a customer that had solar panels and a battery from us last year. The customer returned and asked us about air source heating. We went through the pros and cons of air source heat pumps. We designed, priced and installed the system.

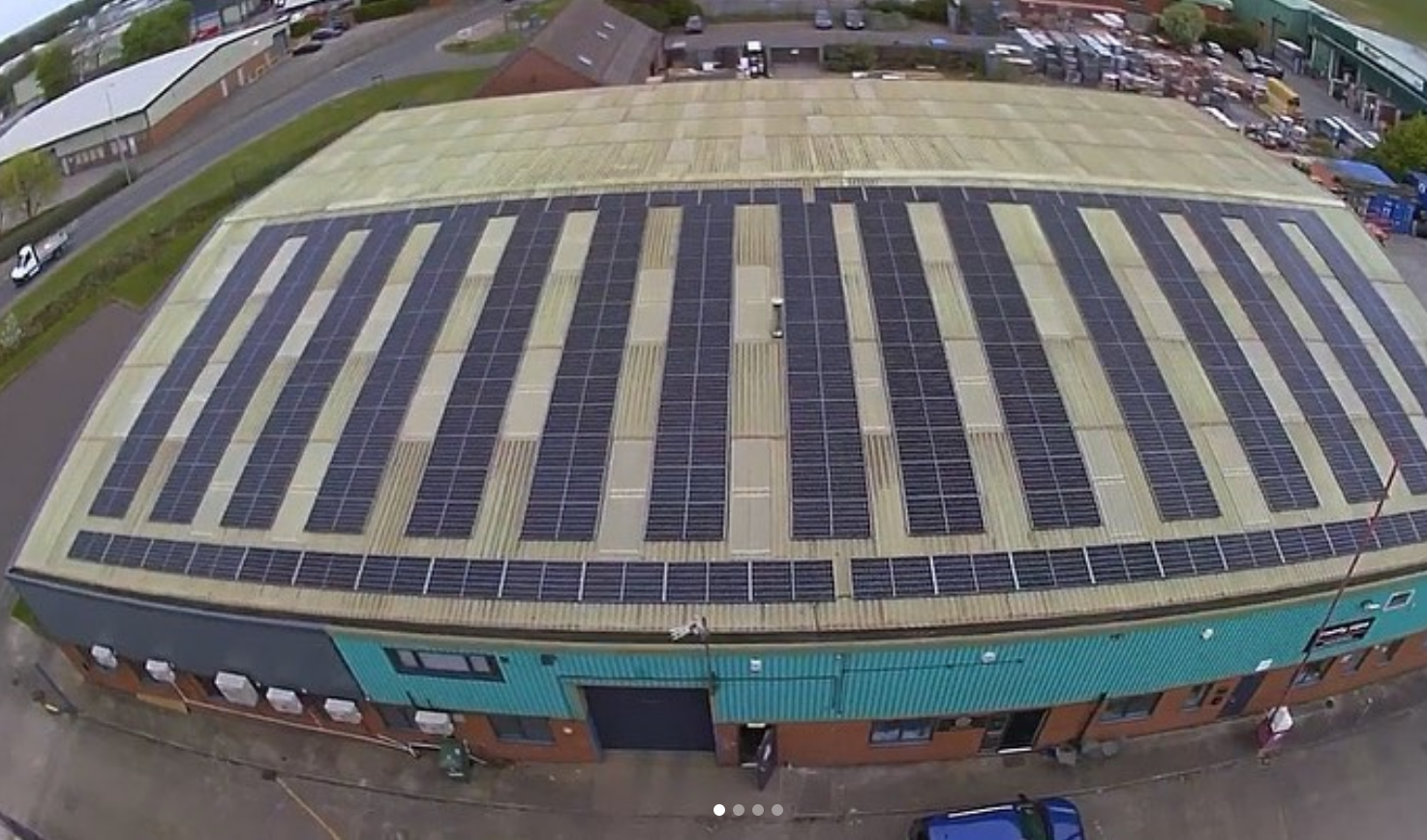

243 Solar PV Panels Installed

243 solar pv panels installed around the sky lights to maintain natural daylight inside the building. Cooks & Company going green and significantly reducing their carbon footprint with this huge 90kw solar pv system.

Boiler re-design and upgrade

Old inefficient gas boiler out and new Viessmann 100 35kw compact installed. The heating system has been re-designed with new controls fitted for higher efficiency and reduced gas consumption.

Domestic Solar Edge Design and Install

8kw solar edge, East / West, flush mounted solar PV system installed on a new garage roof. This system has reduced the electricity by 80% across a 24 hour period. Once we have installed a 10kw battery we will be at 100% saving during the summer months. The system has been designed around the homeowners annual energy usage.

Redesign – gas boiler, hot water cylinder and system controls refit to boost the water pressure

Gas boiler, hot water cylinder and system controls completely removed, redesigned and refitted including a new water boost system for high pressure water delivery throughout the home.

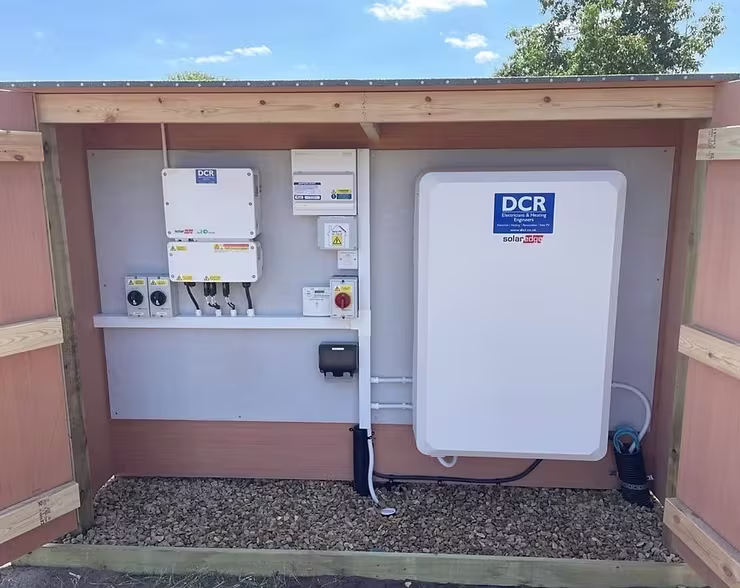

12kw Ground Mount Commercial Solar PV System using Solar Edge Technology

12kw ground mount solar pv system completed today for an existing client. We carried out some tests and analysed the electricity consumption and sized the system around the requirements of the home. We also fitted the latest solar edge home hub inverter which requires the solar edge interface for battery back up during power cuts. This feature is awesome if you run essential circuits like home offices and appliances.

3 phase Solar Edge System including a 13.8kw solar edge battery making cost savings

3 phase solar edge system including a 13.8kw solar edge battery.

We offer free energy consultations and our staff will just offer facts and figures with no pressure. If you would like to find out more and explore how this could work for you please get in touch.

Installation of a Viessmann Vitocal 100-A Heat Pump System, London

Client requirement: DCR to provide a design and replacement heat pump system with installation and after care. A Viessmann Vitocal 100-A was installed with numerous system alterations. Location: London

Solar Edge Seminar for team DCR

Two of our office staff attended a solar edge seminar to discuss the latest product updates and features with solar edge.

It’s great to build and maintain manufacturer relationships and stay current on all the latest features.

East West Solar PV system including 12kwh battery storage and hot water module for a detached home

Another east west solar pv system on rails including 12kwh battery storage and hot water module. Great work from our engineers to deliver this renewable system.

The term “East-West” typically refers to the orientation of the solar panels. In this configuration, solar panels are installed facing both east and west directions to capture sunlight throughout the day. This setup maximises energy production by spreading it more evenly from morning to evening.

The hot water module is designed to use surplus solar energy to heat water. This is often achieved through a solar thermal system that captures heat from the sun and transfers it to a water storage tank. It can be used for domestic hot water needs, such as showers, faucets, and heating.

DCR London – Helping homes and businesses work towards carbon net zero

Gas boiler service for a Viessmann vitodens 100 boiler in Westminster

Gas boiler service by our heating engineer Matthew on a Viessmann vitodens 100 boiler in Westminster today.

This was picked up after some air source heat pump rectification work in London.

9KW 3 Phase Solar PV System with a 13.8KW 3 Phase Battery fitted in North London

9kw 3 phase solar pv system with a 13.8kw 3 phase battery fitted in North London. It was tricky to get all the panels fitted on this property, there were 3 separate areas for panels, flush mounted, surface rail mounted and some on the lower level flat roof.

60kw Solar Edge Solar PV system installation for a fast return on investment

60kw solar edge solar pv system installed in Nottinghamshire for a new client. This building has extremely high electricity usage which gives our client a fast return on investment.

If you are a business and want a free energy survey to see if we could save you money please get in touch sales@dcr.co.uk
